IBR machines and corrugate machines to Togo Jan.2022

Facebook
Twitter
LinkedIn

Description

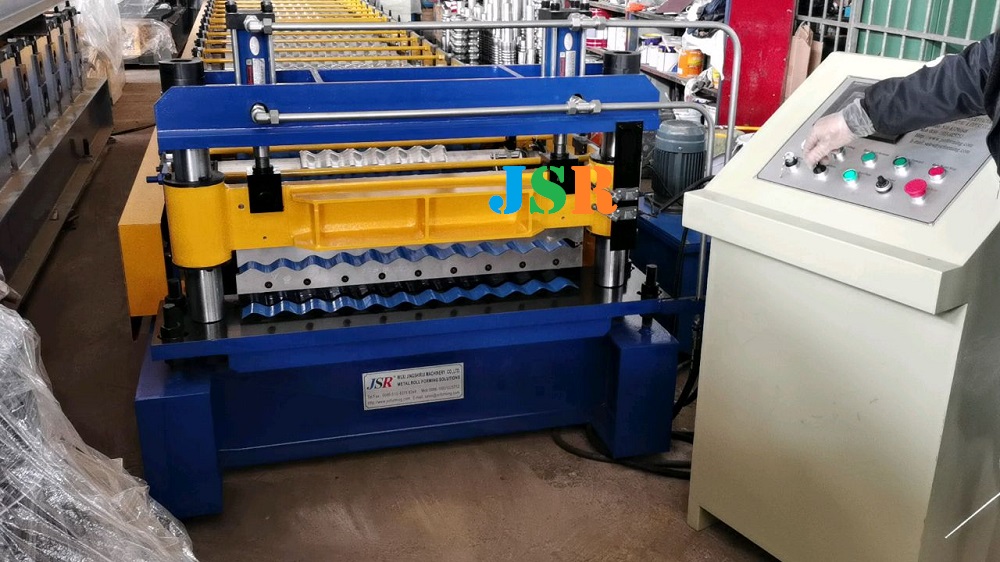

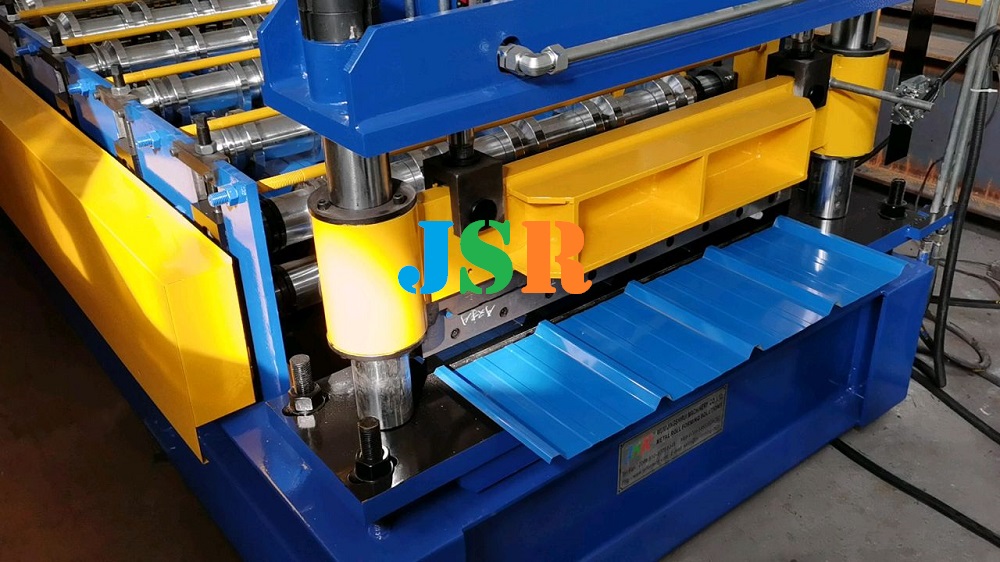

This TOGO customer buy us one IBR sheet machine and two corrugate sheet machine,

one corrugate sheet machine use raw material width 1000mm

the other corrugate sheet machine us raw material width 1200mm

for material thickness0.25-0.7mm, hard material 550 Mpa

because of hard material, corrugate sheet is likely to rebound after roll forming and cutting

we use special roller design to make corrugate sheets at perfect shape.

firstly we make such corrugate sheet machine to Australia customer ten years ago, most material in australia is hard material,

Maquina para sinusoidal a Honduras, 2015

then we make corrugate profile sheet machine to MALAWI, 2016

corrugated matel panel machines to Bengal,2018

Maquina para ondulados a Mexico, 2019

corrugate panel machine to  ANGOLA, TOGO, CAMEROON 2020-2021

JSR factory are specialized in making such corrugated matel panel machines in China

YouTube player

Specifications

Suiting raw material for IBR machines and corrugate machines

1 ) Coil Width: 925mm

2 ) Suitable Coil Thickness:  0.3mm -0.7 mm

3 ) Suitable Raw Materials: galvanized steel sheet

4) Yield strength of raw material: 550Mpa



Main parameters of IBR forming machines and corrugate forming machines

1) Forming Speed:                      Max. About 25m/min. (excluding the cutting time)

2) Main Motor Power:                7.5KW (Depend on final design)

3) Hydraulic Station Power:        3KW (Depend on final design)

4) Control System:                       Mitsubishi or SIEMENS PLC and transducer

5) Encoder:                                   Nemicon (Japan)

6) Rollers’ material                    High grade No.45 forged steel, with digital-controlled procession,

plated with chrome on surface.

7) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

8) Type of Cutting:                   Length-set cutting and post forming style

9) Electric Condition:                380V/3Phase/50HZ(or depend on customer)

10) Total Weight:                       About 8500 Kg of one roll forming machine



Main components of Corrugate sheet making machine  and IBR sheet making machine

(1) Manual decoiler                              1 set(Capacity : 7 tons)

(2) Roll-Forming M/C                          1 set

(3) Hydraulic Cutting                            1 set

(4) Hydraulic station                             1 set

(5) PLC Control System                         1 set

(6) run out table          1 set
