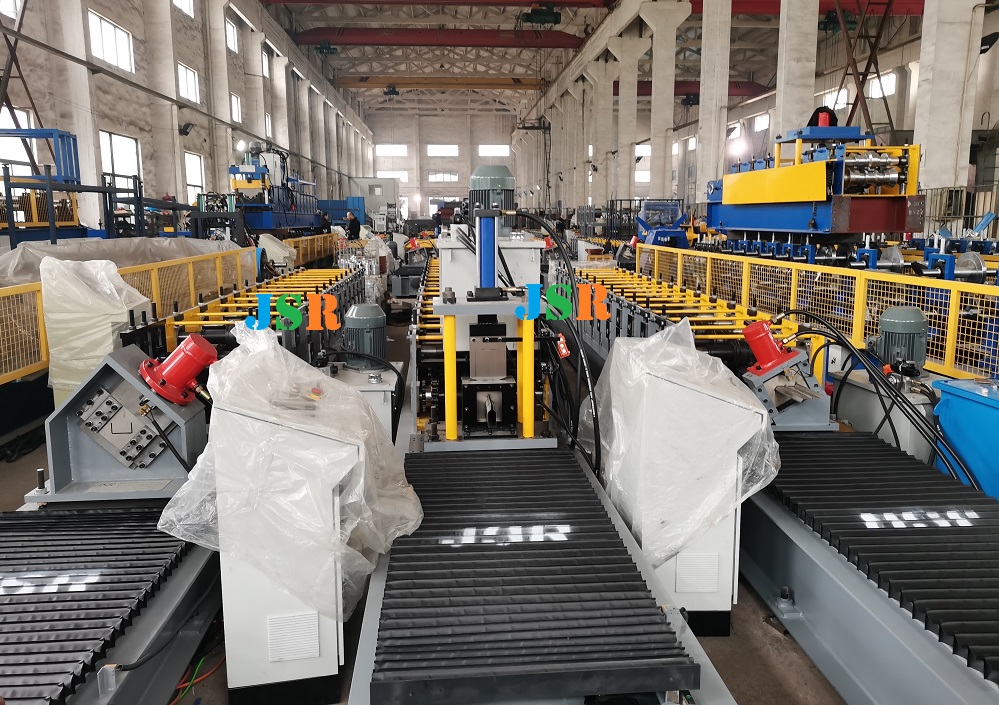

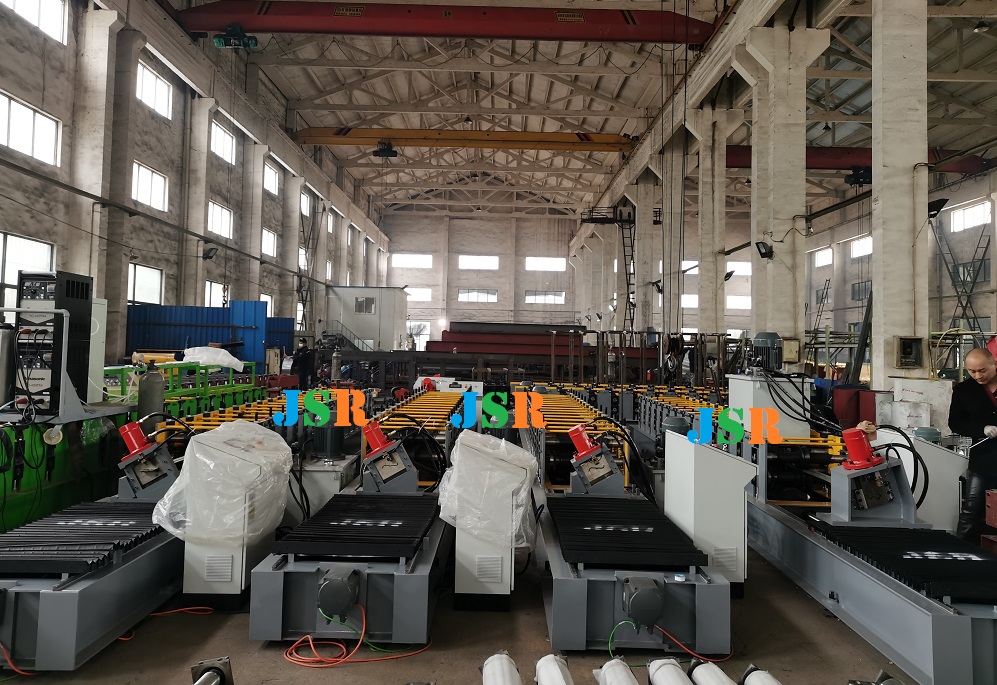

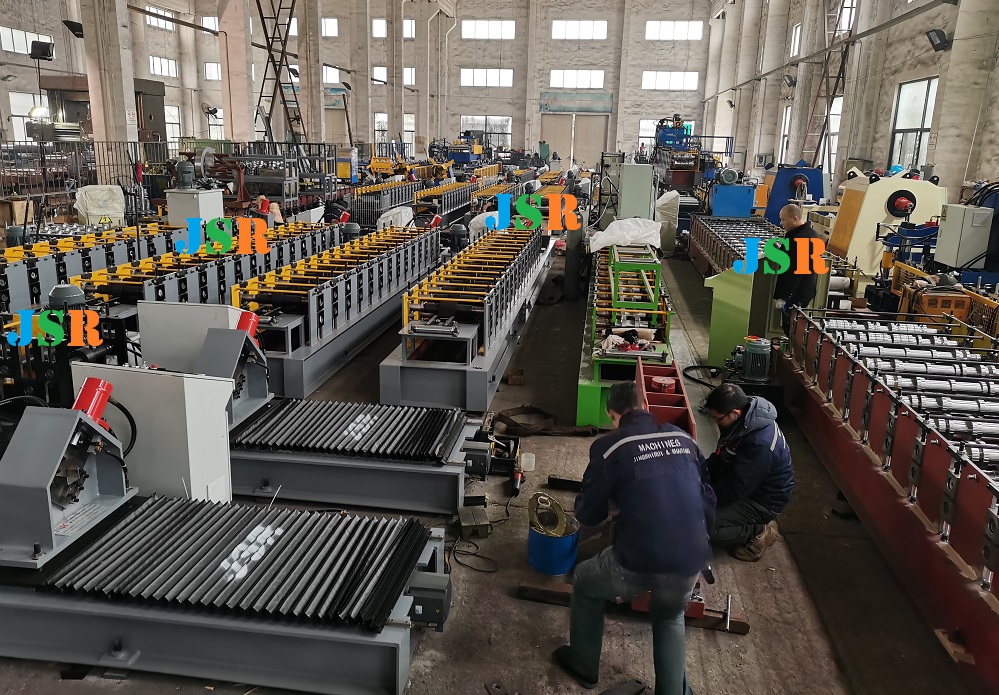

Fast speed roll former for customized profile

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

This customer brought our 16 roll formers in 2018, now buy another 14 roll fomers, customers have large production requirements,

he buy each profile machine 4 sets, besides, he ask for high speed, 20-40m/min, you can feel from video, machine working speed very fast.

machine with siemens motor, siemens servo.

Specifications

Technical Details

Machine Specifications
Weight About 5000kgs
Size About 10m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.4-2mm
Coil width 153mm and 175mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 75mm
Roll Forming Speed 20-40m/min
Forming rollers material GR15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 11kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement
