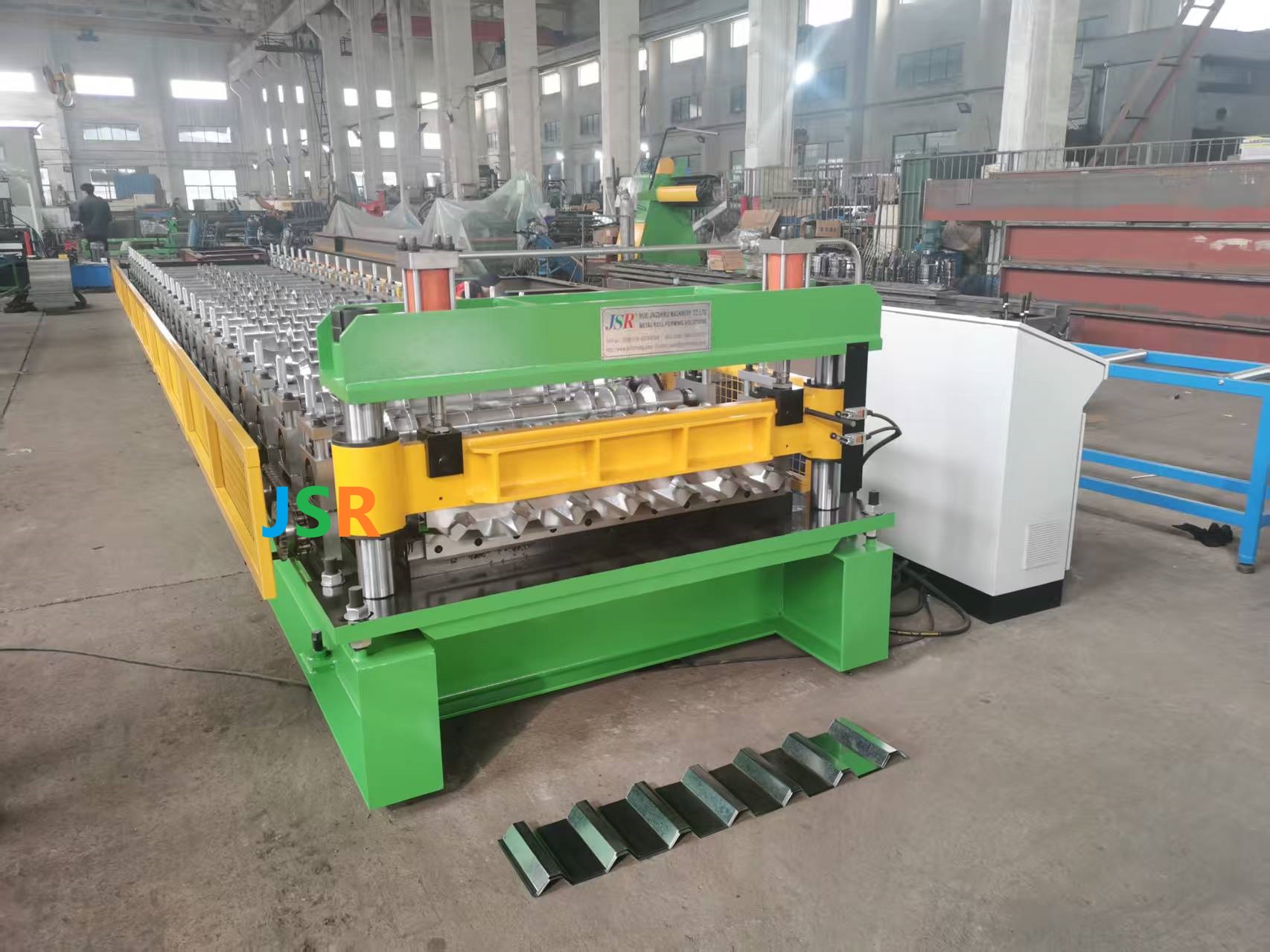

Box Profile roofing Sheets machine to Libya FEB.26, 20125
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm & 1250mm |
| Yield Strength | 235Mpa-550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
