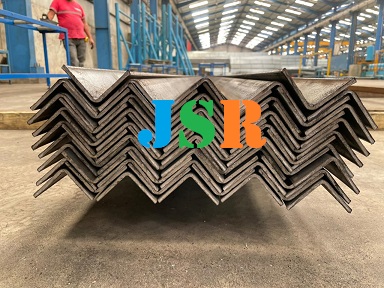

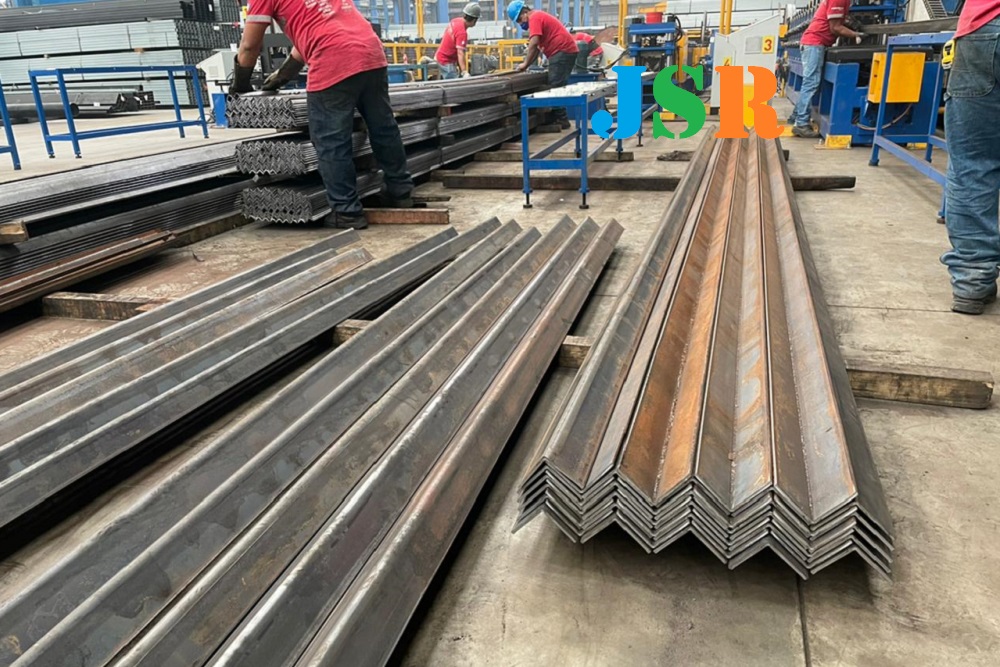

4mm angle bar forming machine
process, decoiler- round corner-forming- cut -run out
roller material GR15 steel with quench treatment, 11kw main motor,siemens control
customer also buy6 mm angle bar forming machine
Suiting raw material for Angle bar roll former
1 ) angle size 20-100mm
2 ) Suitable Coil Thickness: 1.5mm -4mm
3 ) Suitable Raw Materials: galvanized steel sheet
4) Yield strength of raw material: 235-345Mpa
Main parameters of angle roll forming machine
1) Forming Speed: Max. About 15m/min. (excluding the cutting time)
2) Main Motor Power: 11KW (Depend on final design)
3) Hydraulic Station Power: 5.5KW (Depend on final design)
4) Control System: Mitsubishi PLC and transducer (Japan)
5) Encoder: Nemicon (Japan)
6) Rollers’ material High gradeGCR15 Steel plated with quench treatment
7) Shaft diameter 80mm, tooled by grinding machine for two times
to ensure the precision of final product.
8) Type of Cutting: Length-set cutting and post forming style
9) Electric Condition: 440V/3Phase/60HZ(or depend on customer)
10) Total Weight: About 7500 Kg
Main components of angle roll forming machine
(1) Manual decoiler 1 set（Capacity : 7 tons）
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Hydraulic station 1 set
(5) PLC Control System 1 set
(6) Product Rack (un-powered) 1 set
