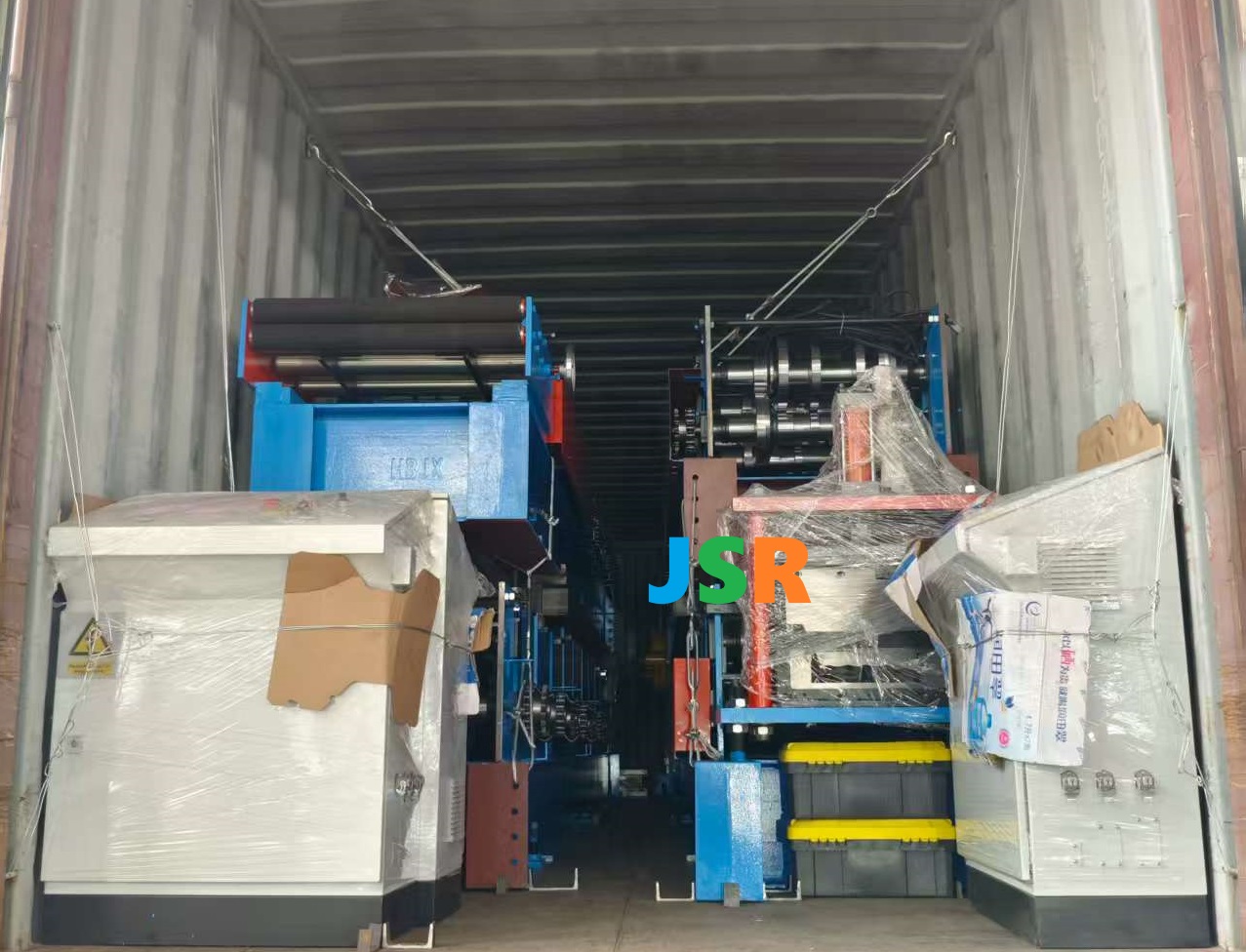

3” Roof Pan roll forming machine, fascia machine and gutter machine load into 40GP to America Jul.11,2025
3” Roof Pan roll forming machine weight about 8500kgs
gutter machine about 7000kgs
fascia machine about 3000kgs
machine automatically work.
when you get machine , you only connect some wire and tubes according to video
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 6000kgs |
| Size | About 7m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and aluminium |
| Thickness | 0.3-0.6mm |
| Coil width | 510mm |
| Yield Strength | 245Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
